Pipe bends are an important part of our product range. We stock European types 2, 3, and 5 with dimensions of up to 1400 mm, as well as American standards (long and short radius) in various gradations.
In addition, we stock a wide range of special wall thicknesses. More specific requirements, such as pipe bends according to your specifications, special materials, and machining, can also be delivered at short notice.
Explanations:
· Type A + Type B
· Type 2
· Type 3
· Type 5
Standards:
EN10253-1, -2, -3, -4
dimensions
DN10 - DN1000
Explanations:
· Type A + Type B
· Type 2
· Type 3
· Type 5
Standards:
EN10253-1, -2, -3, -4
dimensions
DN10 - DN1000 from stock
Various other dimensions available on request
Unalloyed heat-resistant:
P235GH-TC1, P235GH-TC2, P265GH
Alloyed heat-resistant:
16Mo3; on request: 13CrMo4-5, 10CrMo9-10
Stainless steel / V2A series:
1.4541; on request: 1.4301
Stainless steel / V4A series:
1.4571; on request: 1.4404
Cold-tough materials:
S355J2H; on request: P355NH
Other dimensions and materials available on request
All sheets can be mechanically processed or coated according to your specific requirements.
New in stock: seamless/welded 2S and 5S stainless steel elbows in 1.4541/1.4571
Explanations:

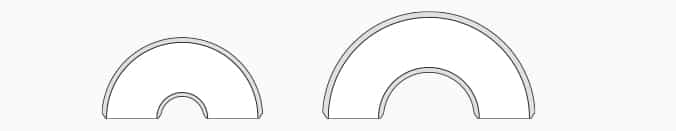

· Short radius
· Long radius
Standards:
ASME B16.9
ASME B16.28
dimensions
1/2" - 24"
Explanations:
· Short radius
· Long radius
Standards:
ASME B16.9
ASME B16.28
dimensions
Upon request
Unalloyed heat-resistant:
P265GH, A234WPB
Stainless steel
304/304L; on request: 316/316L
Other dimensions and materials available on request
All sheets can be mechanically processed or coated according to your specific requirements.
New in stock: seamless/welded 2S and 5S stainless steel elbows in 1.4541/1.4571

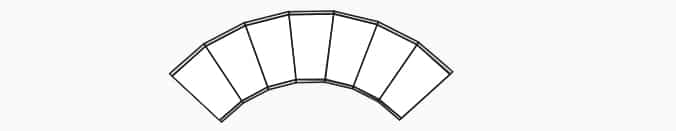

Explanations:
From seamless or longitudinally welded pipes
Dimensions:
DN15-DN350
Wall thicknesses and radii:
· Wall thicknesses from 2.0 to 12.5 mm
· Radii up to 6 m
· Material according to specifications
Dimensions:
DN600-DN1600
Wall thicknesses and radii:
· Various wall thicknesses
· Radius according to specifications
· Material according to specifications
